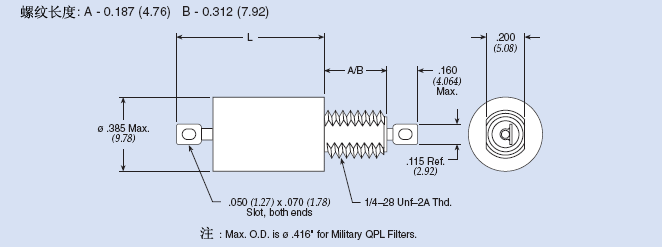

.375φ（Max.9.78mm）T型电路标准系列
|
型号 |
图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
螺纹长度 |
最小插入损耗（dB） |
|
85℃
DC | AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
SCI-2040-012 |
1 |
80 |
--- |
50 |
--- |
2.00 |
1.400 |
27.203 |
B |
8 |
22 |
30 |
55 |
70 |
70 |
70 |
|
SCI-2040-013 |
1 |
80 |
--- |
50 |
--- |
3.00 |
1.400 |
27.203 |
B |
8 |
22 |
28 |
43 |
70 |
70 |
70 |
|
9004-100-2017 |
1 |
80 |
--- |
50 |
--- |
15.0 |
1.400 |
29.947 |
A |
17 |
27 |
34 |
44 |
60 |
70 |
70 |
|
SCI-2140-004 |
1 |
150 |
--- |
100 |
--- |
1.00 |
0.500 |
27.178 |
A |
4 |
25 |
40 |
70 |
70 |
70 |
70 |
|
SCI-2140-006 |
1 |
150 |
--- |
100 |
--- |
3.00 |
0.500 |
27.203 |
A |
4 |
19 |
24 |
39 |
70 |
70 |
70 |
|
SCI-2140-007 |
1 |
150 |
--- |
100 |
--- |
10.0 |
0.500 |
27.203 |
A |
4 |
19 |
24 |
34 |
57 |
70 |
70 |
|
SCI-2340-009 |
1 |
300 |
--- |
300 |
125 |
0.25 |
0.150 |
27.203 |
B |
11 |
57 |
70 |
70 |
70 |
70 |
70 |
|
SCI-2340-004 |
1 |
300 |
--- |
300 |
125 |
1.00 |
0.150 |
27.203 |
A |
--- |
13 |
29 |
59 |
70 |
70 |
70 |
|
SCI-2340-013 |
1 |
300 |
--- |
300 |
125 |
3.00 |
0.150 |
27.203 |
B |
--- |
8 |
14 |
29 |
70 |
70 |
70 |
|
SCI-2340-014 |
1 |
300 |
--- |
300 |
125 |
10.0 |
0.150 |
27.203 |
B |
--- |
8 |
14 |
24 |
47 |
70 |
70 |
.375φ（Max.9.78mm） T型电路军标认证系列
|
型号 |
M15733
M28861
军标号 |
图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
螺纹长度 |
最小插入损耗（dB） |
|
85℃
DC|AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
51-382-609 |
25-0024 |
1 |
--- |
--- |
100 |
--- |
2.00 |
0.750 |
29.947 |
B |
10 |
22 |
31 |
55 |
80 |
70 |
70 |
|
51-382-603 |
25-0007 |
1 |
--- |
--- |
100 |
--- |
4.00 |
0.750 |
34.163 |
A |
10 |
22 |
28 |
43 |
80 |
70 |
70 |
|
51-351-604 |
26-0012 |
1 |
--- |
--- |
150 |
125 |
2.00 |
0.250 |
29.947 |
A |
--- |
13 |
21 |
43 |
80 |
70 |
70 |
|
51-351-603 |
26-0008 |
1 |
--- |
--- |
150 |
125 |
4.00 |
0.250 |
34.163 |
A |
--- |
11 |
18 |
33 |
80 |
70 |
70 |
.375φ（Max.9.78mm）TT型电路标准系列
|
型号 |
图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
螺纹长度 |
最小插入损耗（dB） |
|
85℃
DC | AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
SCI-2060-009 |
1 |
--- |
--- |
50 |
--- |
0.25 |
1.500 |
31.521 |
B |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
|
SCI-2060-013 |
1 |
--- |
--- |
50 |
--- |
3.00 |
1.500 |
31.521 |
B |
--- |
33 |
54 |
70 |
70 |
70 |
70 |
|
SCI-2060-007 |
1 |
--- |
--- |
50 |
--- |
10.0 |
1.500 |
31.521 |
A |
15 |
29 |
35 |
42 |
55 |
70 |
70 |
|
SCI-2060-014 |
1 |
--- |
--- |
50 |
--- |
10.0 |
1.500 |
31.521 |
B |
15 |
29 |
35 |
42 |
55 |
70 |
70 |
|
SCI-2160-011 |
1 |
--- |
--- |
100 |
--- |
1.00 |
1.500 |
31.521 |
B |
12 |
52 |
70 |
70 |
70 |
70 |
70 |
|
SCI-2160-012 |
1 |
--- |
--- |
100 |
--- |
2.00 |
1.500 |
31.521 |
B |
--- |
33 |
56 |
70 |
70 |
70 |
70 |
|
SCI-2160-013 |
1 |
--- |
--- |
100 |
--- |
3.00 |
1.500 |
31.521 |
B |
--- |
24 |
54 |
70 |
70 |
70 |
70 |
|
SCI-2160-014 |
1 |
--- |
--- |
100 |
--- |
10.0 |
1.400 |
31.521 |
B |
12 |
25 |
32 |
42 |
55 |
70 |
70 |
|
SCI-2360-011 |
1 |
--- |
--- |
300 |
125 |
1.00 |
0.500 |
31.521 |
B |
--- |
48 |
70 |
70 |
70 |
70 |
70 |
|
SCI-2360-006 |
1 |
--- |
--- |
300 |
125 |
3.00 |
0.500 |
31.521 |
A |
--- |
12 |
38 |
70 |
70 |
70 |
70 |
|
SCI-2360-007 |
1 |
--- |
--- |
300 |
125 |
10.0 |
0.500 |
31.521 |
A |
5 |
18 |
24 |
34 |
55 |
70 |
70 |
|
SCI-2360-014 |
1 |
--- |
--- |
300 |
125 |
10.0 |
0.500 |
31.521 |
B |
5 |
18 |
24 |
34 |
55 |
70 |
70 |
