.690φ（17.45mm） Pi型电路标准系列
|
型号 |

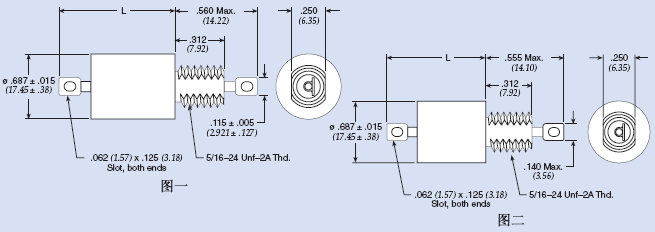

图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
最小插入损耗（dB） |
|
85℃
DC | AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
51-321-322 |
1 |
150 |
--- |
100 |
--- |
1.00 |
2.800 |
30.353 |
35 |
69 |
70 |
70 |
70 |
70 |
70 |
|
SCI-6130-009 |
1 |
150 |
--- |
100 |
--- |
20.0 |
5.200 |
30.353 |
23 |
35 |
42 |
50 |
70 |
70 |
70 |
|
51-321-317 |
1 |
450 |
240 |
400 |
240 |
1.00 |
0.720 |
30.353 |
--- |
53 |
70 |
70 |
70 |
70 |
70 |
|
51-321-318 |
1 |
450 |
240 |
400 |
240 |
3.00 |
0.720 |
30.353 |
--- |
31 |
51 |
70 |
70 |
70 |
70 |
|
51-321-319 |
1 |
450 |
240 |
400 |
240 |
5.00 |
0.720 |
30.353 |
--- |
11 |
30 |
65 |
70 |
70 |
70 |
.690φ（17.45mm） Pi型电路军标认证系列
|
型号 |
M15733
M28861
军标号 |
图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
最小插入损耗（dB） |
|
85℃
DC|AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
51-321-312 |
27-0004 |
1 |
--- |
--- |
200 |
125 |
1.00 |
0.500 |
30.353 |
--- |
47 |
65 |
80 |
80 |
70 |
70 |
|
51-323-313 |
27-0003 |
1 |
--- |
--- |
200 |
125 |
1.00 |
0.500 |
26.187 |
--- |
43 |
61 |
80 |
80 |
70 |
70 |
|
51-321-313 |
27-0010 |
1 |
--- |
--- |
200 |
125 |
5.00 |
0.500 |
30.353 |
--- |
10 |
28 |
64 |
80 |
70 |
70 |
|
51-321-314 |
27-0013 |
1 |
--- |
--- |
200 |
125 |
10.0 |
0.500 |
30.353 |
--- |
16 |
18 |
48 |
80 |
70 |
70 |
|
51-321-329 |
34-0005 |
1 |
--- |
--- |
200 |
125 |
10.0 |
0.500 |
30.353 |
--- |
16 |
18 |
48 |
80 |
70 |
70 |
