8-32螺装(孔径4.39mm) C型电路 |
|
|
|
|
|
8-32螺装(孔径4.39mm) C型电路
|
型号 |

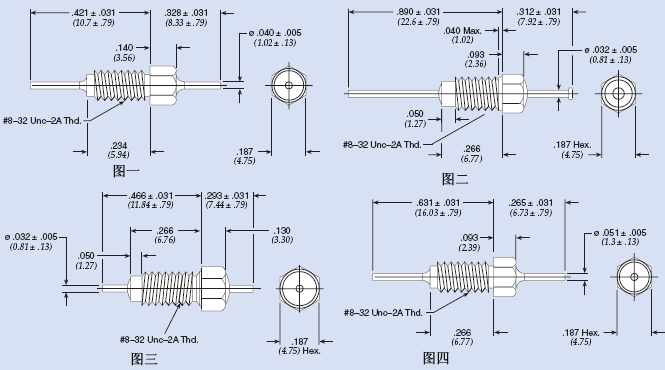

图
号 |
额定电压
125℃ |
电流
Amp |
最小
电容量 |
最小插入损耗（dＢ） |
|
|
1
MHz |
3
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
AC |
|
|
SCI-9200-503 |
2 |
50 |
--- |
10 |
0.05µF |
15 |
24 |
35 |
41 |
45 |
50 |
60 |
60 |
|
|
9950-381-6009 |
3 |
50 |
--- |
10 |
0.12µF |
20 |
30 |
43 |
45 |
55 |
55 |
55 |
55 |
|
|
54-785-017 |
1 |
50 |
--- |
10 |
0.21µF |
28 |
37 |
45 |
50 |
55 |
60 |
70 |
70 |
|
|
9950-381-6008 |
3 |
70 |
--- |
10 |
0.08µF |
15 |
24 |
37 |
41 |
51 |
51 |
55 |
55 |
|
|
54713001X5F101M |
4 |
100 |
--- |
10 |
80pF |
--- |
--- |
--- |
--- |
--- |
10 |
20 |
20 |
|
|
54713004X5U102P |
4 |
100 |
--- |
10 |
100pF |
--- |
--- |
--- |
11 |
20 |
28 |
28 |
28 |
|
|
54-785-013 |
1 |
100 |
--- |
10 |
0.01µF |
--- |
9 |
20 |
29 |
38 |
45 |
50 |
55 |
|
|
SCI-9210-103 |
2 |
100 |
--- |
10 |
0.01µF |
--- |
12 |
20 |
29 |
38 |
45 |
50 |
50 |
|
|
SCI-9210-273 |
2 |
100 |
--- |
10 |
0.027µF |
10 |
20 |
30 |
36 |
45 |
50 |
55 |
60 |
|
|
54-785-005 |
1 |
100 |
--- |
10 |
0.05µF |
15 |
24 |
34 |
41 |
45 |
50 |
60 |
60 |
|
|
9950-381-6007 |
3 |
100 |
--- |
10 |
0.05µF |
13 |
24 |
29 |
37 |
37 |
44 |
44 |
55 |
|
|
54-785-016 |
1 |
100 |
--- |
10 |
0.1µF |
20 |
29 |
38 |
44 |
47 |
55 |
65 |
65 |
|
|
54-785-011 |
1 |
150 |
--- |
10 |
2000pF |
--- |
--- |
8 |
17 |
26 |
32 |
34 |
35 |
|
|
54-785-012 |
1 |
150 |
--- |
10 |
5000pF |
--- |
6 |
15 |
24 |
33 |
37 |
40 |
40 |
|
|
SCI-9220-101 |
2 |
200 |
115 |
10 |
100pF |
--- |
--- |
--- |
--- |
--- |
10 |
20 |
25 |
|
|
SCI-9220-102 |
2 |
200 |
115 |
10 |
1000pF |
--- |
--- |
--- |
11 |
20 |
28 |
28 |
28 |
|
|
SCI-9220-502 |
2 |
200 |
115 |
10 |
5000pF |
--- |
6 |
15 |
24 |
33 |
37 |
40 |
40 |
|
|
|
|
|
|
|
