25芯 孔式、针/孔转接式700系列滤波连接器 |
|
|
|
|
|

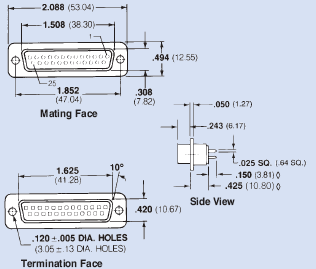

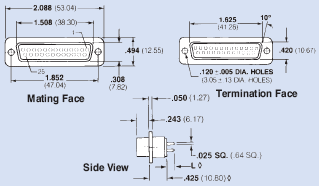

25孔PCB安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-723-001 |
A |
310 pF Pi |
|
|
56-723-002 |
B |
1000 pF C |
|
|
56-723-003 |
C |
1000 pF Pi |
|
|
56-723-004 |
D |
5000 pF C |
|
|
56-723-005 |
E |
4000 pF Pi |
|
|
56-723-023 |
F |
830 pF C |
|
|
56-723-024 |
J |
100 pF Pi |
|
|
56-723-025 |
K |
2500 pF Pi |
|
|
56-723-045 |
N |
375 pF C |
|
|
56-723-069 |
L |
500 pF C |
|

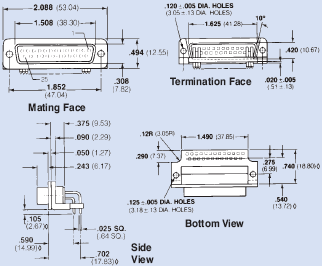

25孔PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-724-001 |
A |
310 pF Pi |
|
|
56-724-002 |
B |
1000 pF C |
|
|
56-724-003 |
C |
1000 pF Pi |
|
|
56-724-004 |
D |
5000 pF C |
|
|
56-724-005 |
E |
4000 pF Pi |
|
|
56-724-008 |
F |
830 pF C |
|
|
56-724-009 |
J |
100 pF Pi |
|
|
56-724-010 |
K |
2500 pF Pi |
|
|
56-724-021 |
N |
375 pF C |
|
|
56-724-046 |
L |
500 pF C |
|
|
型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-723 -006 -017 -012 |
A |
310 pF Pi |
|
|
56-723 -007 -018 -013 |
B |
1000 pF C |
|
|
56-723 -008 -019 -014 |
C |
1000 pF Pi |
|
|
56-723 -009 -020 -015 |
D |
5000 pF C |
|
|
56-723 -010 -021 -016 |
E |
4000 pF Pi |
|
|
56-723 -032 -029 -026 |
F |
830 pF C |
|
|
56-723 -033 -030 -027 |
J |
100 pF Pi |
|
|
56-723 -034 -031 -028 |
K |
2500 pF Pi |
|
|
56-723 -048 -047 -046 |
N |
375 pF C |
|

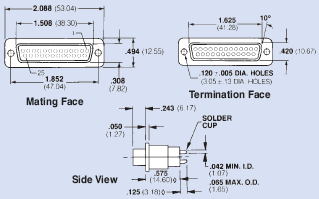

25孔焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-726-001 |
A |
310 pF Pi |
|
|
56-726-002 |
B |
1000 pF C |
|
|
56-726-003 |
C |
1000 pF Pi |
|
|
56-726-004 |
D |
5000 pF C |
|
|
56-726-005 |
E |
4000 pF Pi |
|
|
56-726-006 |
F |
830 pF C |
|
|
56-726-007 |
J |
100 pF Pi |
|
|
56-726-008 |
K |
2500 pF Pi |
|
|
56-726-009 |
N |
375 pF C |
|
|
56-726-021 |
L |
500 pF C |
|

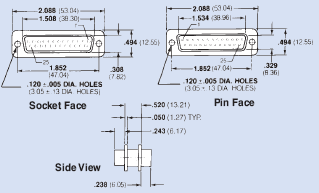

25针/孔转接器
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-725-001 |
A |
310 pF Pi |
|
|
56-725-002 |
B |
1000 pF C |
|
|
56-725-003 |
C |
1000 pF Pi |
|
|
56-725-004 |
D |
5000 pF C |
|
|
56-725-005 |
E |
4000 pF Pi |
|
|
56-725-019 |
F |
830 pF C |
|
|
56-725-020 |
J |
100 pF Pi |
|
|
56-725-021 |
K |
2500 pF Pi |
|
|
56-725-064 |
N |
375 pF C |
|
|
56-725-073 |
L |
500 pF C |
| |
|
|
|
|
|
