标准卡装型阵列板设计尺寸 |
|
|
|
|
|

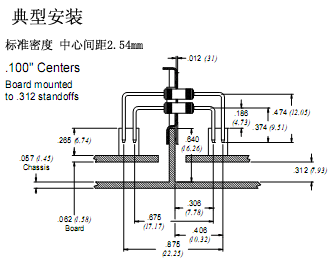

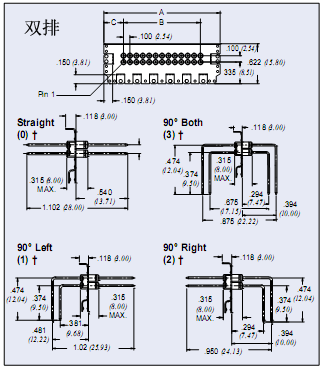

标准密度（中心间距2.54mm）
 |
|
阵列板
长度A |
每排
针数 |
型号：52-898-XXX-XXX |
|
B |
C |
|
27.74
|
1 |
0.00 |
12.60 |
|
2 |
2.54 |
12.60 |
|
3 |
5.08 |
10.06 |
|
4 |
7.62 |
10.06 |
|
5 |
10.16 |
7.52 |
|
6 |
12.70 |
7.52 |
|
46.02
|
1 |
0.00 |
23.01 |
|
2 |
2.54 |
20.47 |
|
3 |
5.08 |
20.47 |
|
4 |
7.62 |
17.93 |
|
5 |
10.16 |
17.93 |
|
6 |
12.70 |
15.39 |
|
7 |
15.24 |
15.39 |
|
8 |
17.78 |
12.85 |
|
9 |
20.32 |
12.85 |
|
10 |
22.86 |
10.31 |
|
11 |
25.40 |
10.31 |
|
12 |
27.94 |
7.77 |
|
13 |
30.48 |
7.77 | |

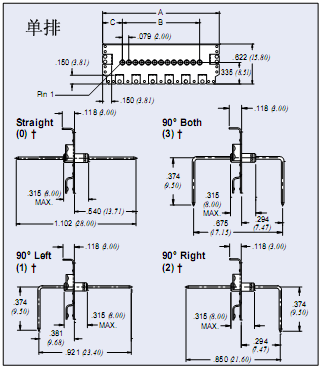

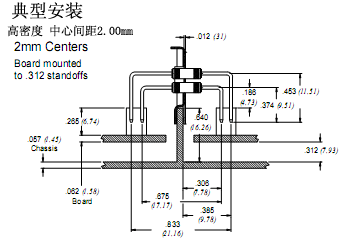

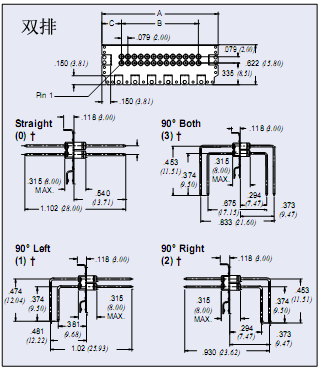

高密度（中心间距 2.00mm）
 |
|
阵列板
长度A |
每排
针数 |
型号：52-960-XXX-XXX |
|
B |
C |
|
27.74
|
2 |
2.00 |
11.77 |
|
3 |
4.00 |
11.77 |
|
4 |
6.00 |
9.77 |
|
5 |
8.00 |
9.77 |
|
6 |
10.00 |
7.77 |
|
7 |
12.00 |
7.77 |
|
46.02
|
2 |
2.00 |
22.00 |
|
3 |
4.00 |
20.00 |
|
4 |
6.00 |
20.00 |
|
5 |
8.00 |
18.00 |
|
6 |
10.00 |
18.00 |
|
7 |
12.00 |
16.00 |
|
8 |
14.00 |
16.00 |
|
9 |
16.00 |
14.00 |
|
10 |
18.00 |
14.00 |
|
11 |
20.00 |
12.00 |
|
12 |
22.00 |
12.00 |
|
13 |
24.00 |
10.00 |
|
14 |
26.00 |
10.00 |
|
15 |
28.00 |
8.00 |
|
16 |
30.00 |
8.00 | | |
|
|
|
|
|
