螺旋管衬垫尺寸代码

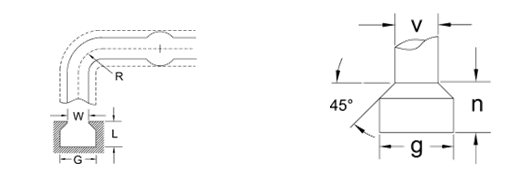

推荐沟槽安装尺寸
英寸（mm）

燕尾槽铣刀尺寸
英寸（mm）

铣刀型号

使用在衬垫型号里的代码*

深度 (L)
+.002"(.051)
-.000"(.000)

宽度 (G)
+.007"(.178)
-.005"(.127)

宽度(W)
+.000"(.000)
-.002"(.051)

n +.000"
-.002"

g +.005"
-.003"

v +.000"
-.002"

Shank Dia.

GC-1-02

-02

.023"
(.584)

.046"
(1.158)

.033"
(.838)

.024"
(.610)

.046"
(1.168)

.027"
(.686)

.1875
(4.763)

GC-1-03

-03

.035"
(.889)

.063"
(1.600)

.045"
(1.143)

.037"
(.940)

.063"
(1.600)

.035"
(.889)

.1875
(4.763)

GC-1-04B

-04

.046"
(1.168)

.094"
(2.388)

.060"
(1.524)

.046"
(1.168)

.094"
(2.388)

.050"
(1.270)

.1875
(4.763)

GC-1-.070

-.070

.053"
(1.346)

.094"
(2.388)

.067"
(1.702)

.054"
(1.372)

.094"
(2.388)

.055"
(1.397)

.1875(4.763)

GC-1-05B

-05

.059"
(1.499)

.109"
(2.769)

.075"
(1.905)

.060"
(1.524)

. .109"
(2.769)

.063"
(2.770)

.1875
(4.763)

GC-1-06

-06

.070"
(1.778)

.125"
(3.175)

.090"
(2.286)

.072"
(1.829)

.125"
(3.175)

.076"
(1.930)

.1875
(4.763)

GC-1-.103

-.103

.077"
(1.956)

.141"
(3.581)

.099"
(2.515)

.078"
(1.981)

.141"
(3.581)

.085"
(2.159)

.1875
(4.763)

GC-1-07B

-07

.082"
(2.083)

.156"
(3.962)

.105"
(2.667)

.080"
(2.032)

.156"
(3.962)

.095"
(2.413)

.1875
(4.763)

GC-1-08

-08

.094"
(2.388)

.171"
(4.343)

.121"
(3.073)

.097"
(2.464)

.171"
(4.343)

.101"
(2.565)

.1875
(4.763)

GC-1-.139

-.139

.104"
(2.642)

.187"
(4.750)

.134"
(3.404)

.114"
(2.896)

.187"
(4.750)

.106"
(2.692)

.1875 (4.763)

GC-1-09

-09

.105"
(2.667)

.187"
(4.750)

.136"
(3.454)

.106"
(2.692)

.187"
(4.750)

.120"
(3.048)

.1875 (4.763)

GC-1-11

-11

.128"
(3.251)

.234"
(5.944)

.165"
(4.191)

.130"
(3.302)

.234"
(5.944)

.145"
(3.683)

.1875(4.763)

GC-1-12

-12

.140"
(3.556)

.250"
(6.350)

.181"
(4.597)

.148"
(3.759)

.250"
(6.350)

.145"
(3.683)

.3750 (9.525)

GC-1-16B

-16

.185"
(4.699)

.240"
(6.096)

.185"
(4.699)

.343"
(8.712)

.230"
(5.842)

.3750 (9.525)

GC-1-20

-20

.234"
(5.944)

.422"
(10.719)

.300"
(7.620)

.234"
(5.944)

.406"
(10.312)

.270"
(6.858)

.3750 (9.525)

GC-1-24

-24

.280"
(7.112)

.500"
(12.70)

.364"
(9.246)

.281"
(7.137)

.500"
(12.70)

.334"
(8.484)

.3750
(9.525)

GC-1-32

-32

.375"
(9.525)

.656"
(16.662)

.485"
(12.319)

.378"
(9.601)

.656"
(16.662)

.438"
(11.125)

.3750
(9.525)

D型多重屏蔽密封条燕尾槽铣刀

DGC-1-04

-0421

.046"
(1.168)

.187"
(4.750)

.138"
(3.505)

.052"
(1.321)

.187"
(4.750)

.118"
(2.997)

.1875 (4.763)

DGC-1-06

-0632

.070"
(1.778)

.250"
(6.350)

.180"
(4.572)

.075"
(1.905)

.250"
(6.350)

.160"
(4.064)

.3750 (9.525)

DGC-1-08B

-0842

.094"
(2.388)

.313"
(7.95)

.240"
(6.096)

.087"
(2.210)

.313"
(7.95)

.230"
(5.842)

.3750 (9.525)

DGC-1-12

-1263

.140"
(3.556)

.500"
(12.70)

.367"
(9.322)

.146"
(3.708)

.500"
(12.70)

.337"
(8.560)

.500"
(12.70)

DGC-1-16

-1684

.188"
（4.775）

.625"
(15.875)

.485"
(12.319)

.193"
(4.902)

.625"
(15.875)

.455"
(11.557)

.8250 (20.955)
